特徴

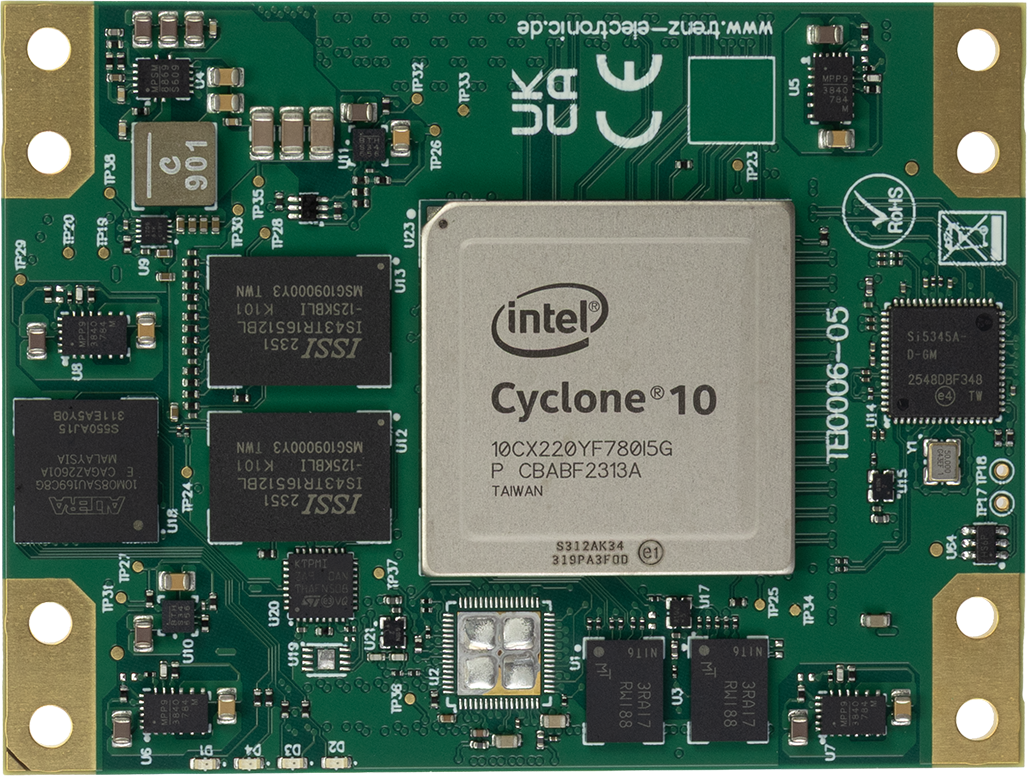

• Altera® Cyclone® 10 GX Industrial [10CX220YF780I5G]
  • Package: FBGA-780
  • Speed Grade: 5 (Fastest)
  • Temperature: -40°C to 100°C
  • Package compatible device 10CX150 and 10CX105 as assembly variant on request possible
• 2 x SDRAM DDR3L Memory IC 8 Gbit (1 GByte), Half rate: 533 MHz; Quarter rate: max. 800 MHz
• 2 x SPI Flash, 1 Gbit (128 MByte)

• 1 x Gigabit Ethernet
• 10-Channel, Any-Frequency, Any-Output Jitter Attenuator/Clock Multiplier
• Altera® MAX 10 as System Controller (CPLD)
• 2 Kbit EEPROM Memory

• 4 x User LED

• I/O interfaces: 226/94/46 (IOs/DIFF. Pairs/LVDS Pairs)
• 12 x 12.5 Gbps Transceiver

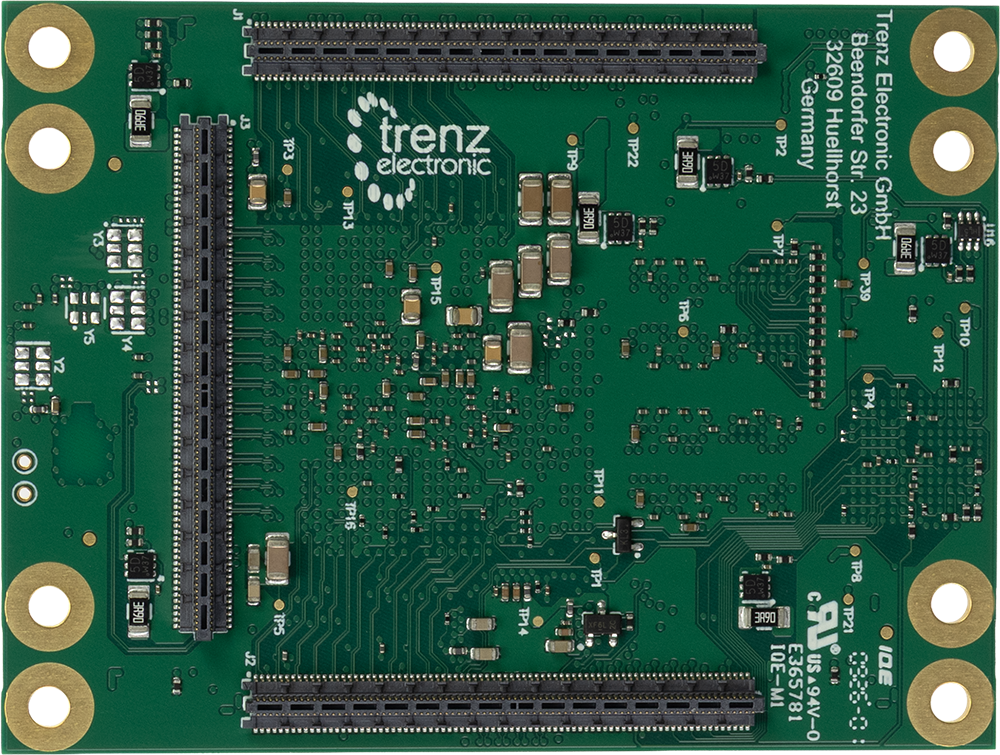

• Board to Board (B2B) Connection: Plug-on module with 3 x 160-pin Samtec Razor Beam (ST5) connectors

• 5 V Power Supply

• Dimension: 8 cm x 6 cm

Other assembly options for cost or performance optimization plus high volume prices available on request.

納品物

• 1 x TEI0006-05-API23A Trenz Electronic FPGA module with Altera® Cyclone® 10 GX

追加情報

• Manufacturer&lquot;s article number: TEI0006-05-API23A
• Trenz Electronic TEI0006 Wiki
• Support Forum
